XQ28 / 1.8Y Hydraulic Power Tong Alloy Steel Drilling Tool

Brand Name : ATO

Certification : API

Place of Origin : CHINA

MOQ : 1 sets

Price : To be negotiated

Payment Terms : L/C, T/T

Supply Ability : 100 Piece/Pieces per Day

Delivery Time : 10-15days

Packaging Details : wooden box

Machine Type : Drilling Tool

Processing Type : Forging

Color : yellow

Usage : make-up/break out sucker rod

Type : hydraulic sucker rod tong

Material : Alloy steel

Size : 5/8"-1-1/8"

Advantage : High Performance

Contact Now

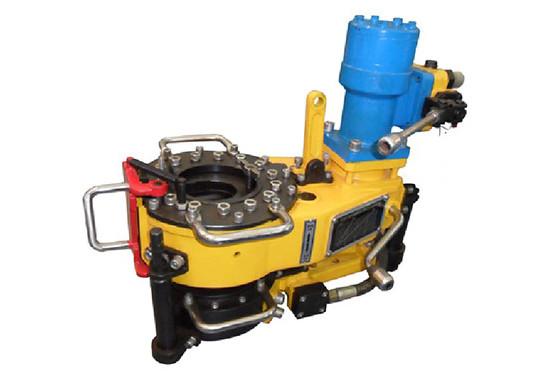

XQ28/1.8Y Hydraulic Power Tong

Introduction:

Description: The XQ28/1.8Y Hydraulic Power Tongs feature an open-throat design that provides fast, convenient make-up and break out of threaded sucker-rod connections in well-servicing process. The master tongs are driven by a slow-spinning hydraulic motor that delivers high torque. Hand-operated directional valves are directly matched up with the motor for motion control. The whole installation is light weight, compact and easy to carry.

The hydraulic backup tongs come together with the master tongs to confirm combination tongs. Via operating the said directional control value, the back up tongs would synchronize with master tongs in tightening up or loosening the sucker rod. Both the master tongs and backup tongs are of negative camber roll climbing two-way clamping mechanism. To reverse the rotation of these tongs, users only need to turn around the knobs on them. Tongs dies are also available in different specifications to fit diverse sucker-rods or oil pipes. Additionally, our hydraulic tubing tongs can operate at either one of two speeds for jerking and rotating movements. This allows for improved working efficiency.

Specification:

Applicable Range mm(in)	Sucker Rod CYG 16-28(16,19,22,25,28)5/8-1 1/8(5/8,6/8,7/8,1,1 1/8) Tubing Outside Diameter Φ48~60(1 7/8~2 3/8)
Max. Torque in high Gear kN.m(ft-lbs)	0.7(516)
Max. Torque in Low Gear kN.m(ft-lbs)	1.8(1328)
Max. Speed in High Gear(r/min)	104
Max. Speed in Low Gear(r/min)	40
Max. Working Pressure Mpa(psi)	10(1450)
Max. Oil Supply L/min(gpm)	65(17.2)
Tong Opening Size mm(in)	63(2 1/2’’)
Overall Dimension of Combination Tongs	543×334×404mm(21.4’’×13’’×16’’)
Capacity of Hydraulic Power Tong kg(lbs)	95(210)
