2 3/8 Inch -7 Inch Ram Drilling BOP Ruber VBR Ram Packer

Brand Name : ATO

Certification : API, ISO9001

Place of Origin : China

Payment Terms : L/C, T/T

Packaging Details : Wooden box

BOP Size : 7 1/16''- 13 5/8''

work pressure : 5000psi-15000psi

Drill pipe size range : 2 3/8''-7''

Material : Rubber

Contact Now

Ram BOP Rubber Core / packer /VBR Ram Packer

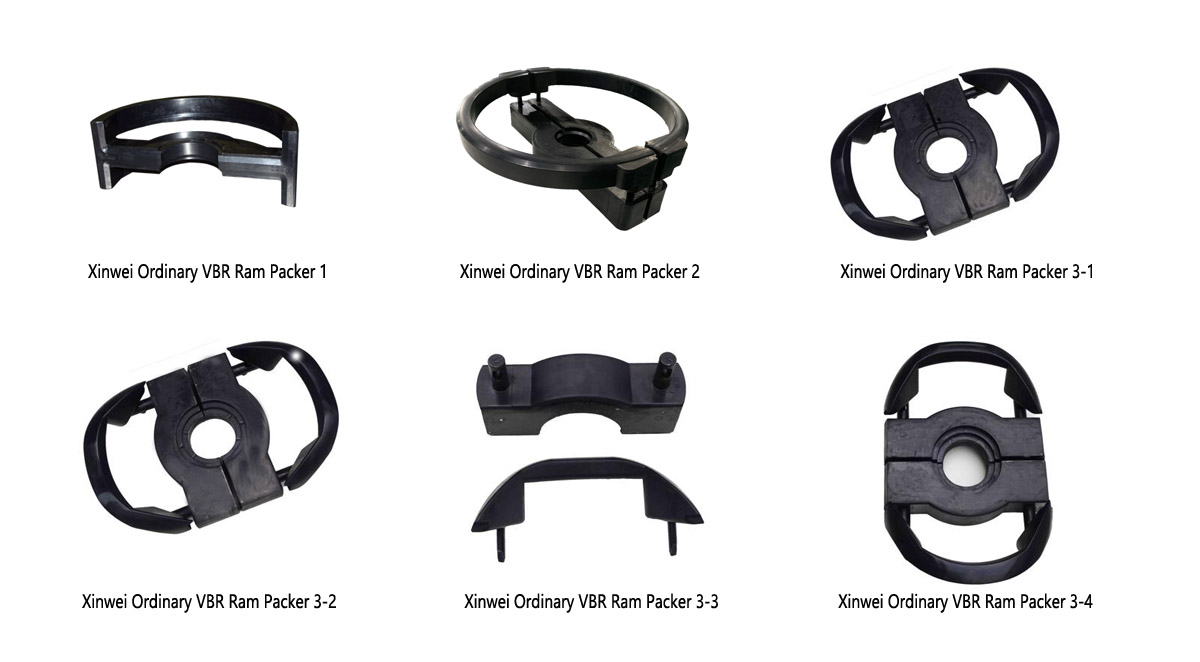

VBR Ram Packer 1 - Type U

2 3/8 Inch -7 Inch Ram Drilling BOP Ruber VBR Ram Packer

The rubber ram packer can be applied to serval sizes of drill tools, espeicially for combination tool and hexagonal drill pipe. There is no need to change the ram frequently for different size of drill tools in the whole process.

BOP Size	Work Pressure	Drill pipe size range
13 5/8''	10000psi	4 1/2''-7''
	15000psi	2 7/8''-5''
	15000psi	3 1/2''-5 1/2''

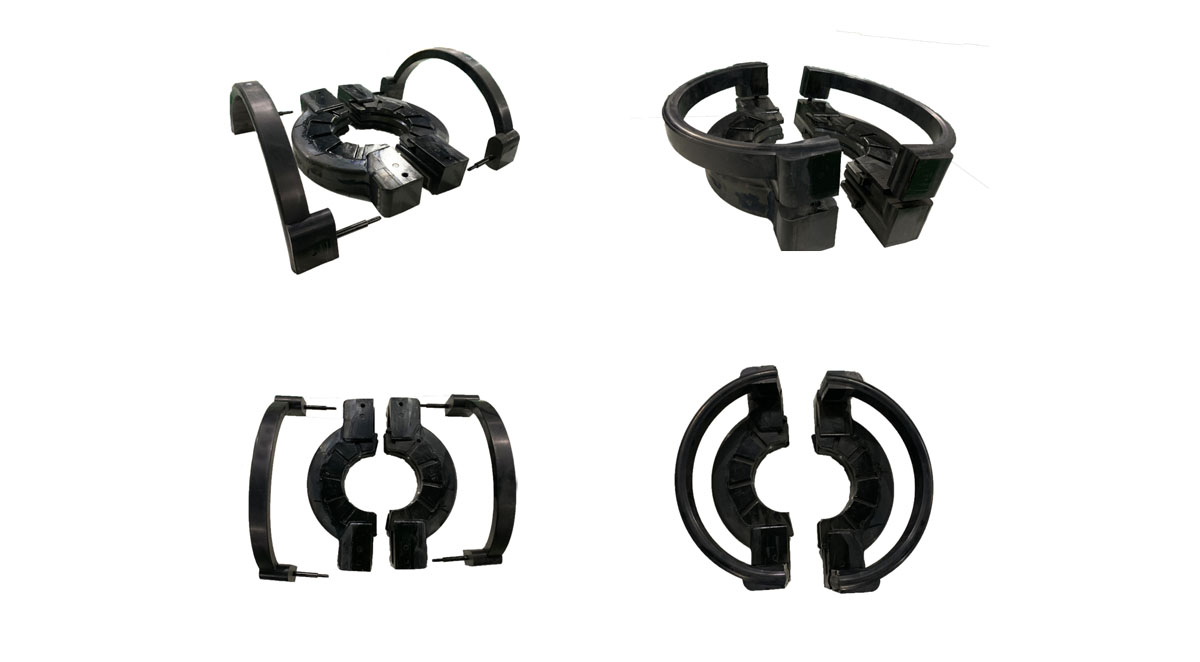

VBR Ram Packer 2

2 3/8 Inch -7 Inch Ram Drilling BOP Ruber VBR Ram Packer

BOP Size	Work Pressure	Drill pipe size range
11''	5000psi	2 7/8''-5''
13 5/8''	10000psi	2 7/8''-3 1/2''
		3 1/2''-5 1/2''
		3 1/2''-5''
		5''-5 1/2''

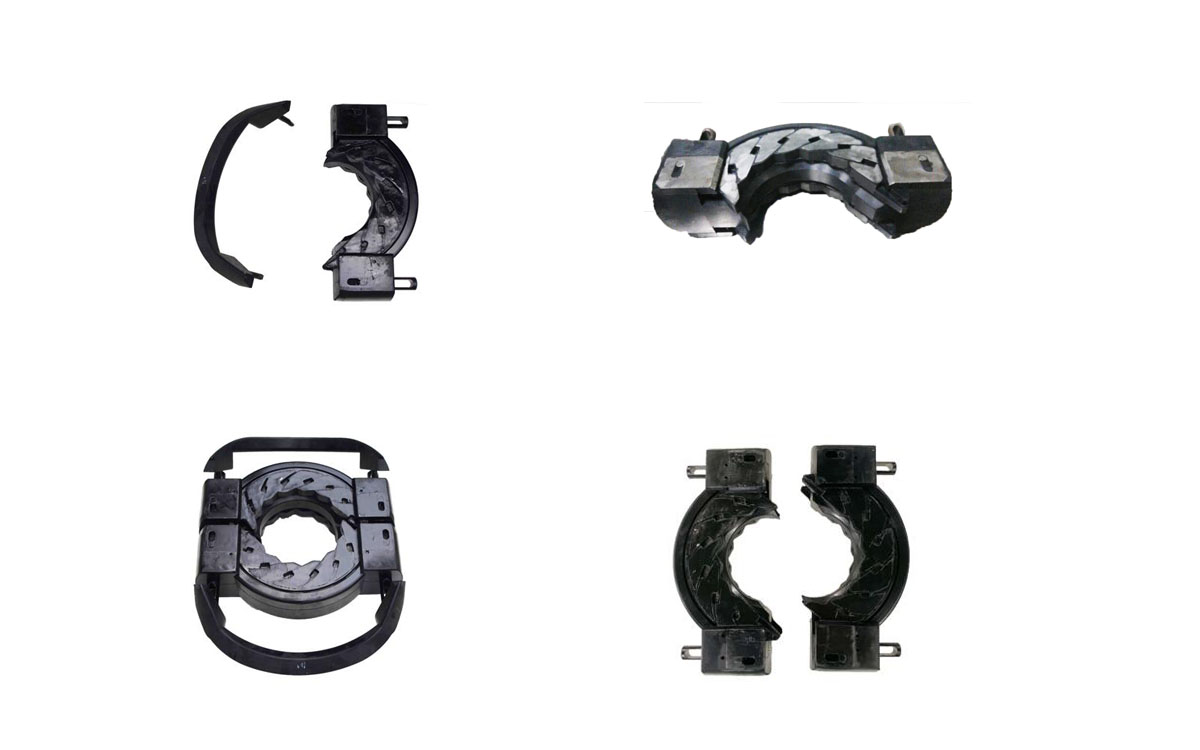

VBR Ram Packer 3

2 3/8 Inch -7 Inch Ram Drilling BOP Ruber VBR Ram Packer

BOP Size	Work Pressure	Drill pipe size range
13 5/8''	10000psi	3 1/2''-5''
13 5/8''	10000psi	5''-5 1/2''

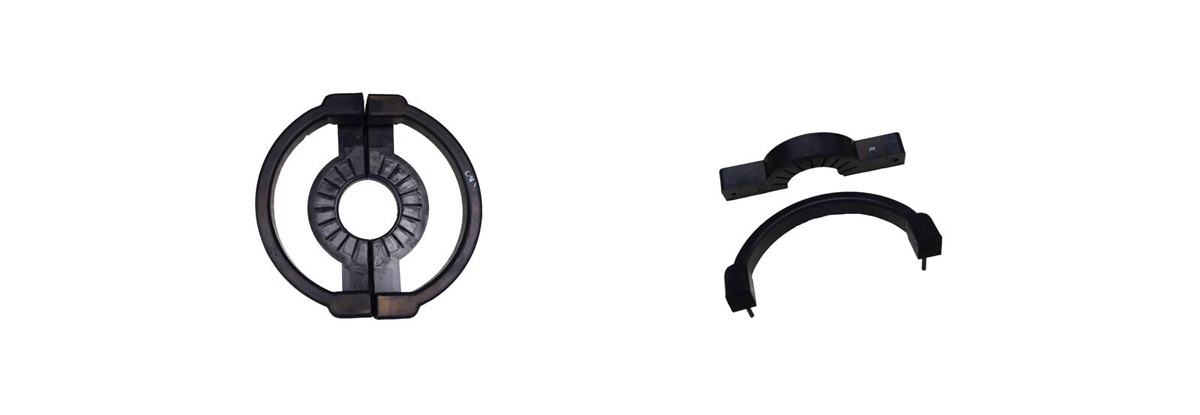

VBR Ram Packer 4

This kind of rubber VBR packer can seal on different sizes pipes within the diameter range.

Feature:

1. It is applicable to existing well control BOP ordinary ram block,as long as the existing ordinary ram block is available it can be used to install the new utility model variable packer.

2. VBR packer can be applied to seal on various specifications drill pipe within a certain range. For 3 1/2"-5"VBR packer, it can be installed on 5" ordinary ram bloc to seal on 3 1/2'4".4 1/2" and 5" drill pipe, thus reduce the store and change of these three kinds of ordinary ram packers and ram blocks; save and reduce the store and change of these three kinds of ordinary ram packers and ram blocks; save and reduce a lot of manpower, material resources and financial resources; speed up the drilling progress. when change the ram assembly, greatly reduced the risk of well control.

BOP Size	Work Pressure	Drill pipe size range
7 1/16''	5000psi	2 7/8''-3 1/2''
		2 3/8''-3 1/2''
		3 1/2''-4 1/2''
	10000psi	2 7/8''-3 1/2''
11''	10000psi	2 7/8''-3 1/2''
13 5/8''	10000psi	3 1/2''-5''
13 5/8''	10000psi	5''- 5 1/2''
Double faced 11''	5000psi	5''-7''
Double faced 11''	10000psi	3 1/2''-5''
