API 4LP Swivel Drilling Rig Drawworks 300r/Min 1350kN

Product Categories

XIAN ATO INTERNATIONAL CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model Number : SL135, SL170, SL225, SL450, SL675

Certification : API Spec.8A/8C and industry standards of SY/T5530

Place of Origin : China

Payment Terms : T/T, L/C

Delivery Time : 45 work days

Brand Name : ATO

MOQ : 1

Supply Ability : 4sets/month

Packaging Details : Wooden box

Certificate : Industry standards of SY/T

Contact Now

Introduction

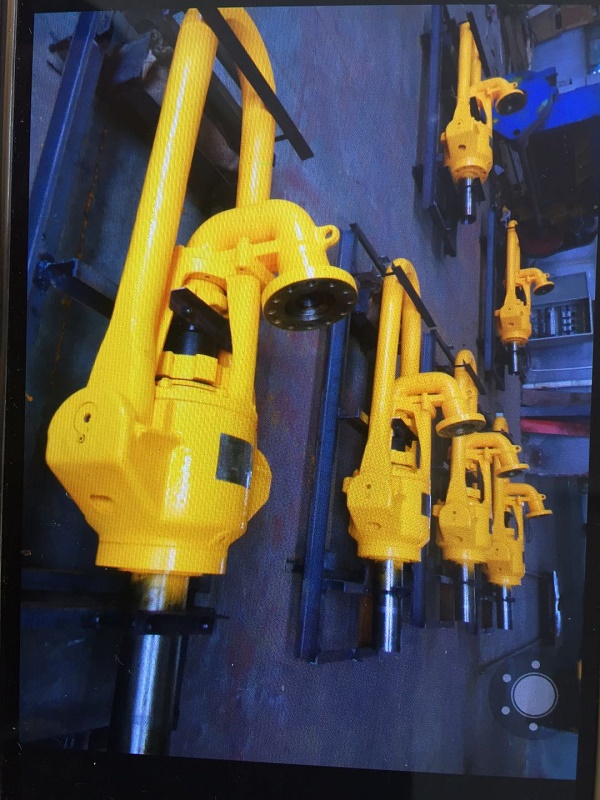

The swivel conform to API Spec.8A/8C and industry standards of SY/T5530.

Technical Features:

With optional double pin alloy steel sub.The wash pipe and the packing assembly are cartridge type and easy to replace.

The gooseneck and the rotary hose are connected by unions or API 4LP.

Technical Specifications

Model		SL135	SL170	SL225	SL450	SL675
Max.static load capacity ,kN		1350	1700	2250	4500	6750
Max. Speed, r/min		300	300	300	300	300
Max.working pressure, MPa		35	35	35	35	52
Dia. of stem, mm		64	64	75	75	102
Coupling thread	To stem	4 1/2"REG,LH	4 1/2"REG,LH	6 5/8"REG,LH	7 5/8"REG,LH	8 5/8"REG,LH
Coupling thread	To kelly	6 5/8"REG,LH	6 5/8"REG,LH	6 5/8"REG,LH	6 5/8"REG,LH	6 5/8"REG,LH
Overall dimension, mm (L×W×H)		2505×758×840	2786×706×791	2880×1010×1110	3035×1096×1110	3775×1406×1240
Weight, kg		1341	1834	2815	3060	6880
Note: the above-mentioned swivel have spinners (dual-purpose) and no spinners.

Product Tags:

Swivel Drilling Rig Drawworks
