Sand Pump 240m3/H To 260m3/H Solid Control Equipment Drilling

Brand Name : ATO

Model Number : SB8×6×14

Certification : API

Place of Origin : China

MOQ : 1sets

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5sets/month

Delivery Time : 45 work days

Packaging Details : Wooden

Model : SB8×6×14

Discharge Capacity : 240-260(m3/h)

Pump Head : 28-33(m)

Efficiency : 65%

Motor Power : 55/75KW

Motor Speed : 1450/1750rpm

Inlet Diameter : 8in

Outlet Diameter : 6in

Weight : 1150KG

Dimensions : 1920x652x1015mm

Contact Now

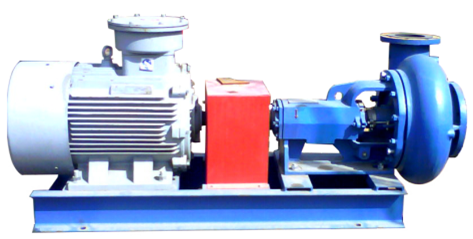

Solid Control System Drilling Sand Pump Model SB8×6×14 API Standard

Product Description

Sand Pump is mainly used to transport drilling mud, it can be used as a slurry pump for de-sanding, desiltering and centrifuges. It can be used as a mixing pump for jet mixing, and it is also be used as an infusion pump for recharge and mud pumps.

Technical Parameters

Model Sec	SB8x6x14	SB8x6x11	SB6x5x11	SB4x3	SB3x2
Discharge Capacity (m³/h)	240~260	220~240	180~220	60	50
Pump Head (m)	28~33	24~28	24~28	22~28	22~28
Efficiency	65%	65%	65%	65%	65%
Motor Power(kW)	55/75	37/45	30/37/45	11/15	7.5/11
Motor Speed(rpm)	1450/1750	1450/1750	1450/1750	1450/1750	1450/1750
Inlet Diameter (in)	8	8	6	4	3
Outlet Diameter (in)	6	6	5	3	2
Weight (kg)	1150	1050	920	460	400
Dimensions (mm)	1920x652x1015	1800x600x980	1788x580x900	1360x500x632	1355x500x632
