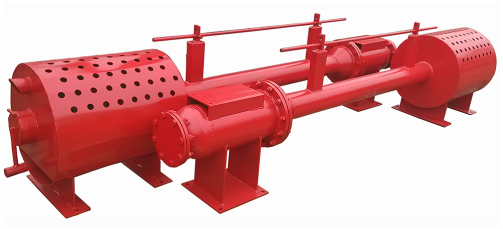

Remote Control Diesel 40L Electronic Ignition Device

Brand Name : ATO

Model Number : ATODHQ40L

Certification : API

Place of Origin : China

MOQ : 1sets

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2sets/month

Delivery Time : 45 work days

Packaging Details : Wooden

Model : ATODHQ40L

Fuel Tank Capacity : 40L

Spray Flame Length : ≈2m

Ignition Medium : Diesel

Charging Voltage : ～220V . 50HZ

Ignition Frequency : ≤10 times/second

Ambient Temperature : 30℃～40℃

Remote Control Distance : 30 m

Outlet Pressure Regulated By : ≥0.5 Mpa

Contact Now

Solid Control System Drilling Electronic Ignition Device API Standard

Product Description

Ignition Device is an environmentally-friendly discharge torch. It is suitable for ignition of long distances and air and toxic gas burning places that cannot be reached by humans. It is especially suitable for oil production(gas) overflow of gas or oil, natural gas, and drilling operation in station gathering pipelines, and long-distance ignition of natural gas separated by liquid-gas separators during killing operations eliminate the unsafe factors of manual ignition. Avoid explosions that may occur when natural gas is mixed with air and H2S-containing gases that can harm humans and equipment.

Technical Parameters

Horizontal Electronic Ignition Device		Vertical Electronic Ignition Device
Fuel Tank Capacity	40L	Burner(Torch) Path	DN200mm
Spray Flame Length	≈2m	Burner Height	3m
Ignition Medium	Diesel	Power	DC
Charging Voltage	～220V . 50HZ	Ignition Voltage	16kV
Ignition Frequency	≤10 次/秒	Ignition Frequency	100～1000 /min
Ambient Temperature	－30℃～40℃	Ambient Temperature	40℃～55℃
Remote Control Distance	30 m
Outlet Pressure Regulated By Regulating Valve	≥0.5 Mpa
