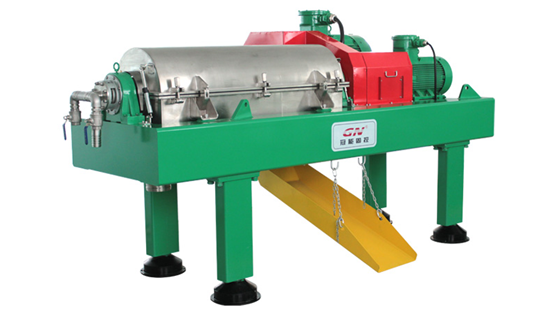

Horizontal 14 Inch 360mm Solid Bowl Decanter Centrifuge

Brand Name : GN

Model Number : GNLW363C-GP

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2sets/month

Delivery Time : 45days

Packaging Details : Wooden

Model : GNLW363C-GP

Bowl Diameter : 14inch(360mm)

Bowl Length : 50inch(1271mm)

Max Capacity : 200GPM(45m³/h)

Typical Capacity : 132GPM(30m³/h)

Max Bowl Speed : 3900RPM

Contact Now

Solid Control Equipment Drilling GN 14 Inch Decanter Centrifuge

14 Inch (360) Decanter Centrifuge – High Speed Centrifuge

The GN 14 inch (360mm) diameter bowl decanter centrifuge which has a length over diameter ratio of 3.5:1 with high speed up to 4000 RPM. The centrifugally casted duplex stainless steel bowl and the tungsten carbide hardened tiles on the solids conveyor maximize the GNLW363 centrifuges operational service life between overhauls.

DESCRIPTION

The GN 14 inch (360mm) diameter bowl decanter centrifuge which has a length over diameter ratio of 3.5:1 with high speed up to 4000 RPM. The centrifugally casted duplex stainless steel bowl and the tungsten carbide hardened tiles on the solids conveyor maximize the GNLW363 centrifuges operational service life between overhauls. The GNLW363 features replaceable ceramic/tungsten carbide inserts at the feed distribution and solids discharge zones. The unit also has Tungsten Carbide plows to continuously clear the solids discharge area. All bearings fitted to the GNLW363 centrifuge are SKF premium brand bearings for extended service life and reliable operation

GN 14 Inch (360) Decanter Centrifuge Specifications

Model GNLW363C-GP GNLW363C-VFD GNLW363D-FHD GNLW364E-VFD
Dive Mode Fixed Speed VFD FHD VFD
Bowl Diameter 14inch(360mm) 14inch(360mm) 14inch(360mm) 14inch(360mm)
Bowl Length 50inch(1271mm) 50inch(1271mm) 50inch(1271mm) 59.5inch(1512mm)
Max Capacity 200GPM(45m³/h) 200GPM(45m³/h) 200GPM(45m³/h) 242GPM(55m³/h)
Typical Capacity 132GPM(30m³/h) 132GPM(30m³/h) 132GPM(30m³/h) 154GPM(35m³/h)
Max Bowl Speed 3900RPM 3900RPM 3900RPM 3900RPM
Typical Bowl Speed 3200RPM 0~3200RPM 0~3200RPM 0~3200RPM
Max G Force 3063G 3063G 3063G 3063G
Typical G Force 2062G 0~2062G 0~2062G 0~2062G
Cut Point 2~5µm 2~5μm 2~5μm 2~5μm
Differential Speed 38RPM 0~45RPM 0~65RPM 0~65RPM
Gearbox Torch 3500 N·M 3500 N·M 3717 N·M 3500 N·M
Gearbox Ratio 57:1 57:1 Hydraulic Gearbox 57:1
Main Motor 37KW(50HP) 37KW(50HP) 45KW(60HP) 37KW(50HP)
Back Drive Motor 11KW(15HP) 11KW(15HP) N/A 11KW(15HP)
Recommend Pump Motor 7.5KW(11HP) 7.5KW(11HP) 7.5KW(11HP) 7.5KW(11HP)
Remarks Above Max capacity is for water, the treating capacity would be various as per different material conditions and customer required treating results.
